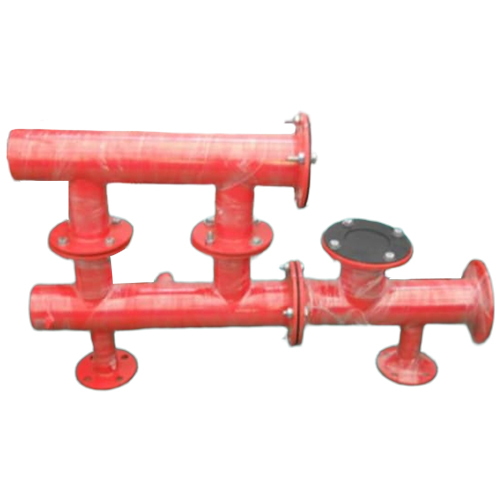

4 inch Drip Irrigation Head Unit

About 4 inch Drip Irrigation Head Unit

A 4-inch drip irrigation head unit is the central control hub of a drip irrigation system designed for large-scale applications, such as agriculture, large landscapes, or industrial use. It is responsible for regulating water flow, filtering impurities, and, in many cases, injecting fertilizers into the irrigation lines.

Key Components

A typical 4-inch drip irrigation head unit includes the following essential components:

• Pumping Unit: A pump of suitable capacity is used to draw water from the source (e.g., borewell, open well, canal) and pressurize it for delivery to the system.

• Filtration System: This is one of the most critical parts of the head unit. Since drippers have very small openings, filtering out particles is essential to prevent clogging. A 4-inch head unit for industrial or large agricultural applications may include multiple stages of filtration:

  • Sand Media/Gravel Filter: This is the first stage of filtration, used to remove organic substances and fine particles like sand, silt, and clay.

  • Hydrocyclone Filter: This filter uses centrifugal force to separate heavier suspended particles from the water.

  • Screen or Disc Filter: As a secondary filter, it removes smaller particles that may have passed through the initial filtration stages.

• Fertigation Unit: This system allows for the precise application of fertilizers and other nutrients directly into the irrigation water. Common types include:

  • Venturi Injectors: These use the flow of water to create a vacuum that draws fertilizer solution into the main line.

  • Fertilizer Tanks: These tanks are connected to the main line and allow for the controlled release of a pre-mixed fertilizer solution.

• Control Valves and Gauges: The unit is equipped with various valves (e.g., ball valves, gate valves, throttle valves) to control water flow and pressure. Pressure gauges are included to monitor the system's operating pressure, which is crucial for uniform water distribution.

• Main Line Connection: The head unit has a 4-inch outlet that connects to the main PVC or HDPE pipeline, which distributes water to the rest of the system.

Features and Applications

• Robust Construction: These units are built with durable materials like high-grade engineering plastics, GI (galvanized iron), or metal to withstand high pressures and varying environmental conditions.

• Precise Control: The inclusion of various valves and pressure gauges provides operators with precise control over water discharge and pressure across the entire irrigation system.

• Versatile Application: A 4-inch drip irrigation head unit is ideal for a wide range of applications, including large agricultural fields, greenhouses, nurseries, and large-scale landscape projects.

• Improved Efficiency: By filtering water and enabling targeted application of nutrients, the head unit helps optimize water and fertilizer use, leading to increased crop yield and reduced waste.

Installation and Maintenance

Installation of a 4-inch drip irrigation head unit typically involves connecting the unit to the water source and the main pipeline. It is important to minimize the use of fittings and bends to ensure optimal flow. Regular maintenance is crucial to prevent system failure. This includes:

• Cleaning Filters: The sand, screen, and disc filters need to be regularly cleaned to remove trapped debris.

• Chemical Treatment: Acid or chlorine treatments may be necessary to clear out any mineral or biological buildup in the system.

• Checking Components: Regularly inspect all valves, gauges, and connections for leaks or damage.
